New component debut:

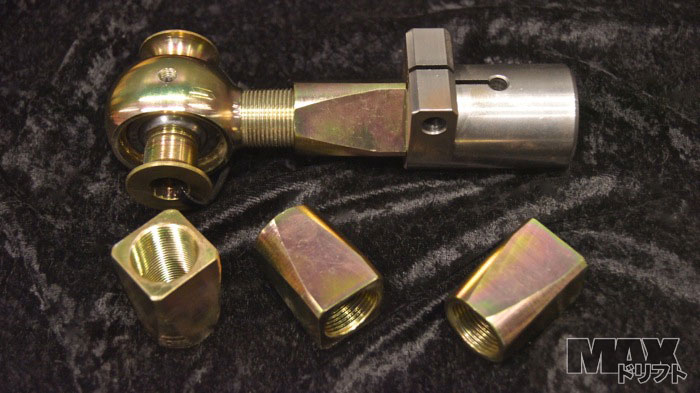

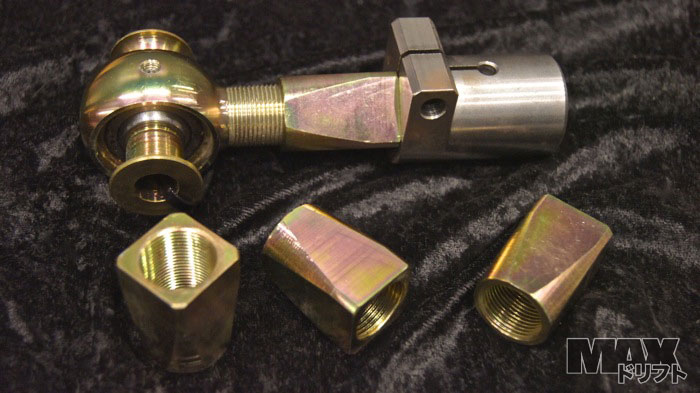

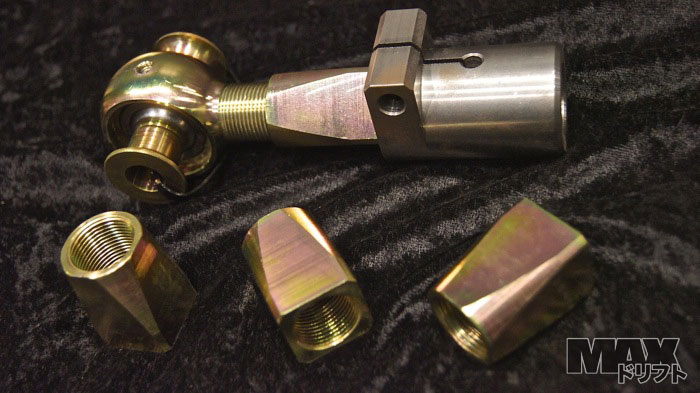

Limit Break Nut

Protect your rod ends when adjusting your front lower control arms to the widest setting for angle clearance / track width, (which is 3/4" or 19mm of thread depth in rod end receiver). Covers 40mm of excessive exposed threads.

~ Gold Zinc Plated reinforcement sleeve / Jam nut
~ Upgrade for exsisting FLCA, Included in upcoming LB FLCA
~ 26mm Wrench Square
~ m22 1.5 Reverse Threaded ID matches all MAX forged rod end bearing housing threads
~ Sold in pairs for $30




[ Edited Tue Dec 23 2014, 03:47AM ]
