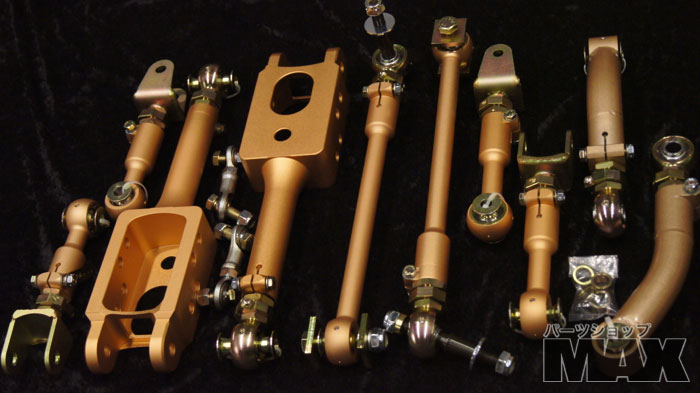

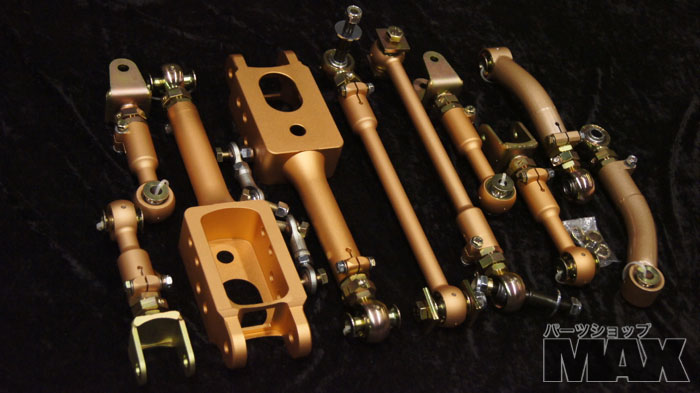

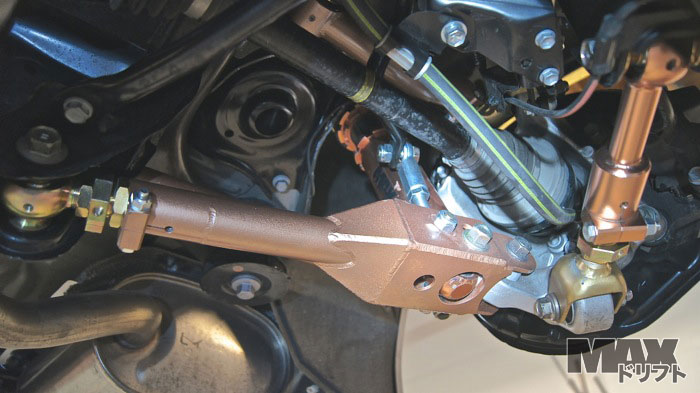

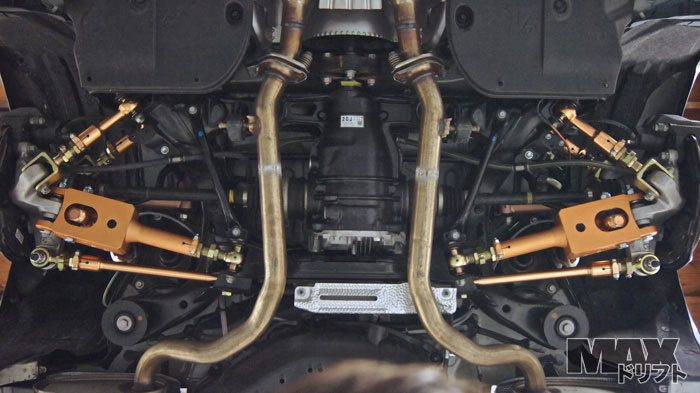

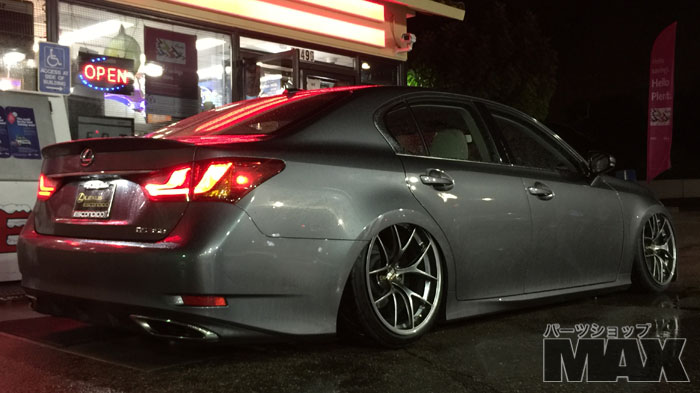

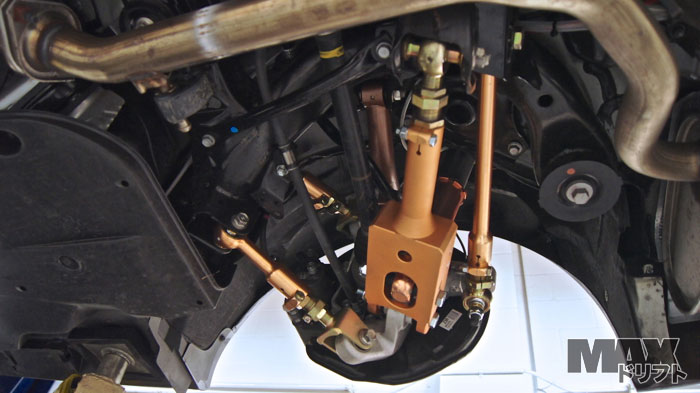

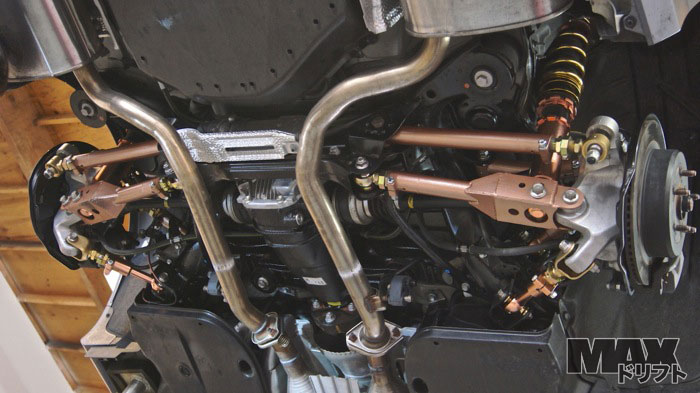

Full rear end parts set preview:

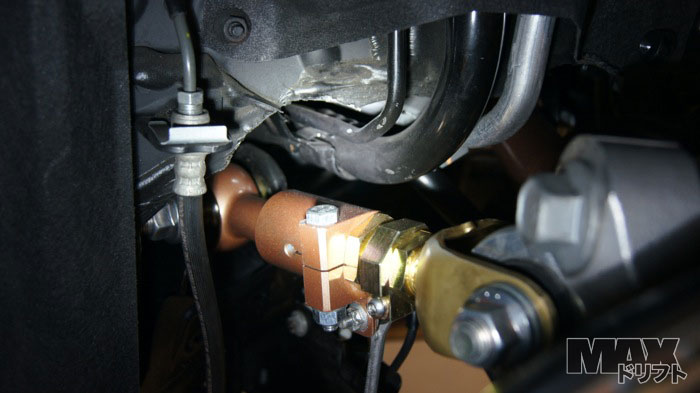

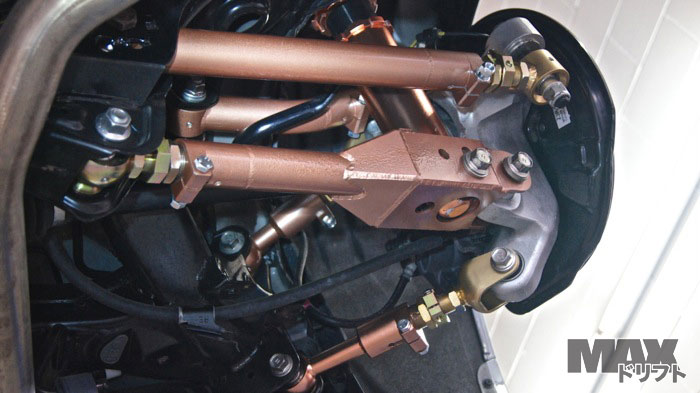

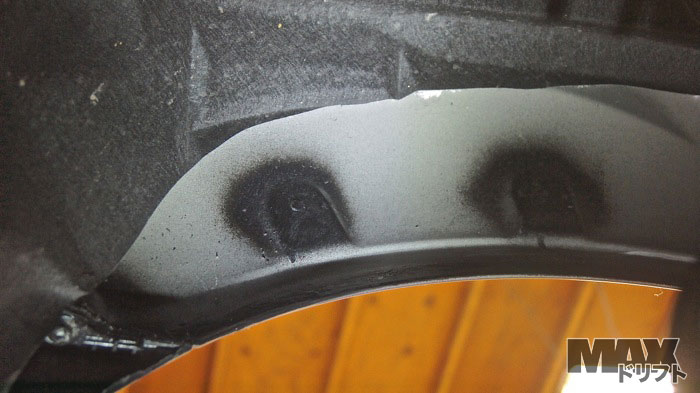

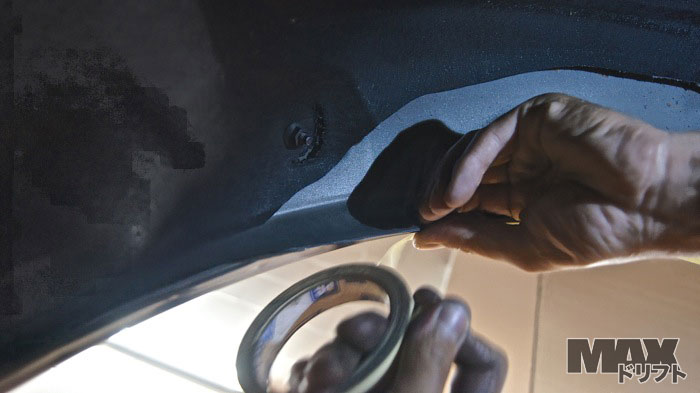

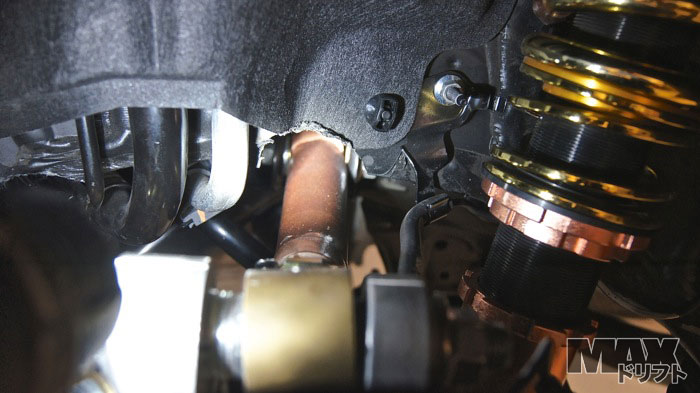

We notched the pinch weld above the traction and camber arms, and also cut some items around the quarter panel lip.


The cuts were epoxy panel bonded and or painted to maintain rigidity and prevent rust.





[ Edited Wed Feb 03 2016, 12:41PM ]
Back to top
Dan at MAX USA
Tue Dec 23 2014, 04:56PM

Registered Member #2
Joined: Sun Jan 21 2007, 01:28PM

Posts: 2866
Its hard to fit a low offset, wide wheel on a lexus without:
1. spending a great deal of time and money in the body shop,
2. using excessive camber settings that destroy tires and drivability.

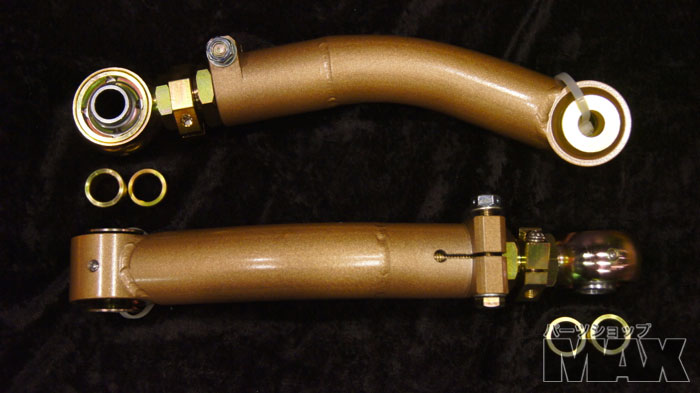

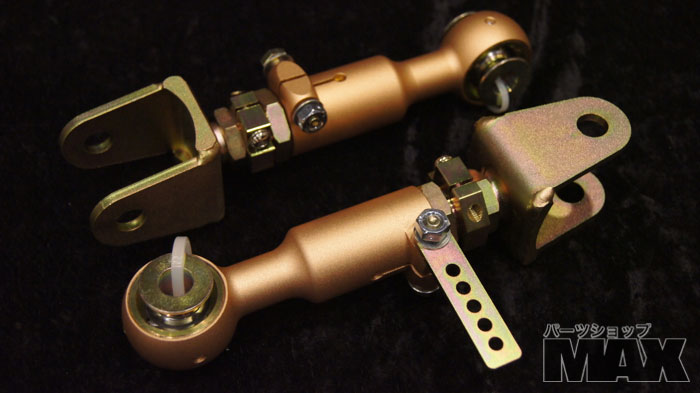

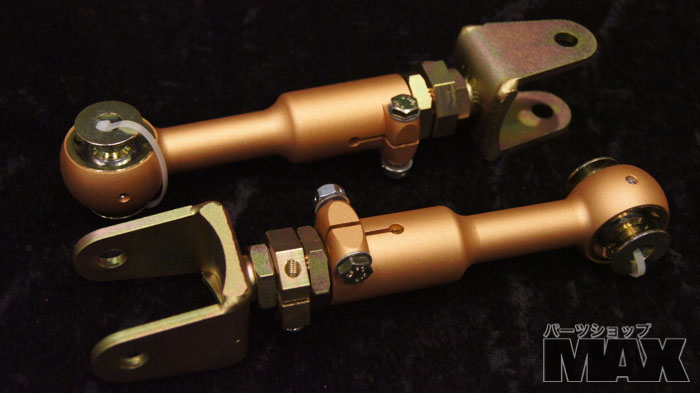

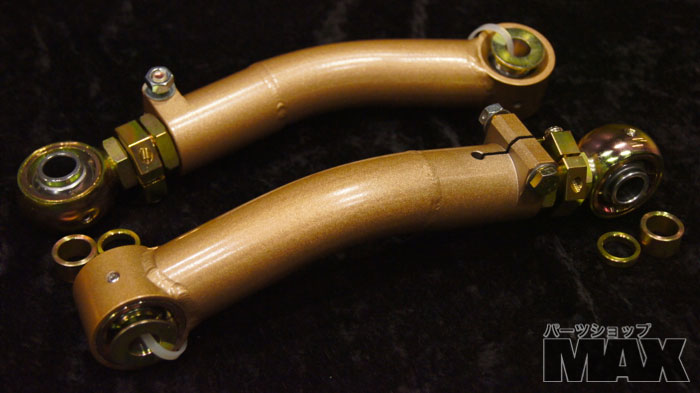

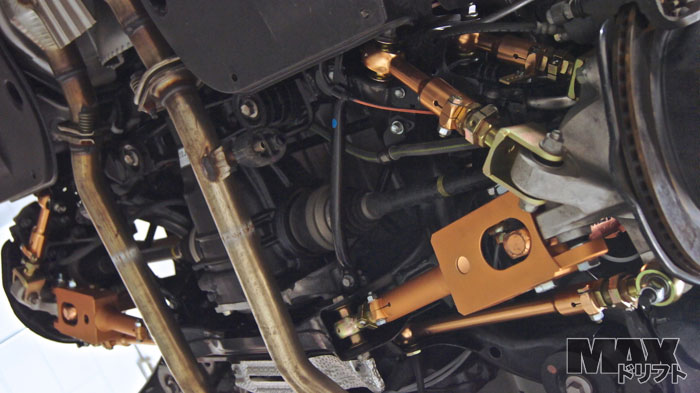

We thoughtfully engineered a fully adjustable suspension solution that replaces:

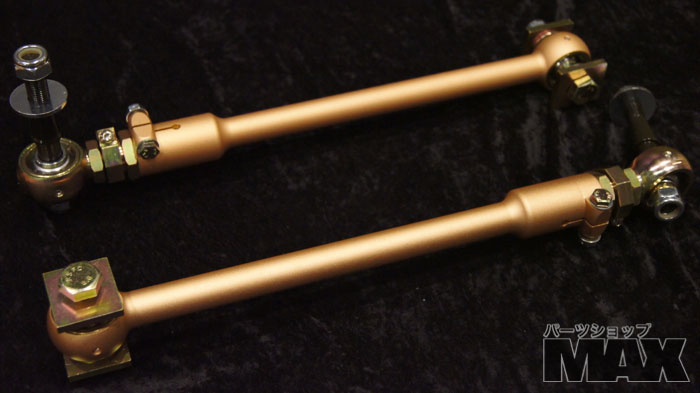

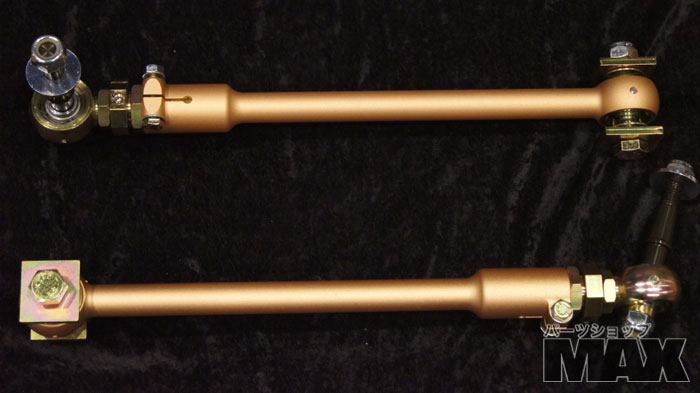

~ Upper and Lower traction rods (controls the wheel position)
* we made an adjustable mounting point on the upper traction rod for the HID headlight sensor
~ Upper and lower control arms (controls camber)
* Lower arm is only for the coil over damper conversion, not the OEM style separated spring and damper
~ Sway bar Link
~ Toe rods

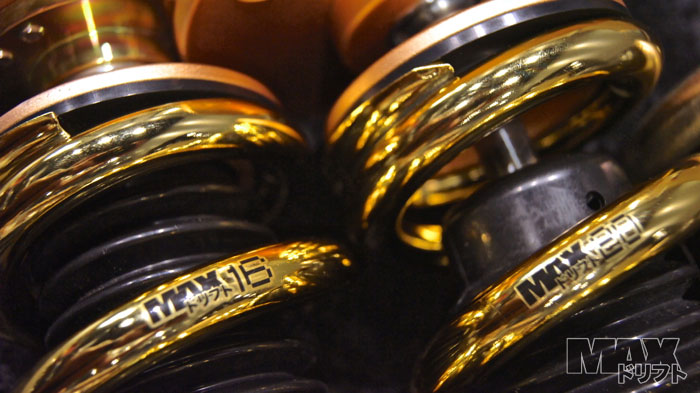

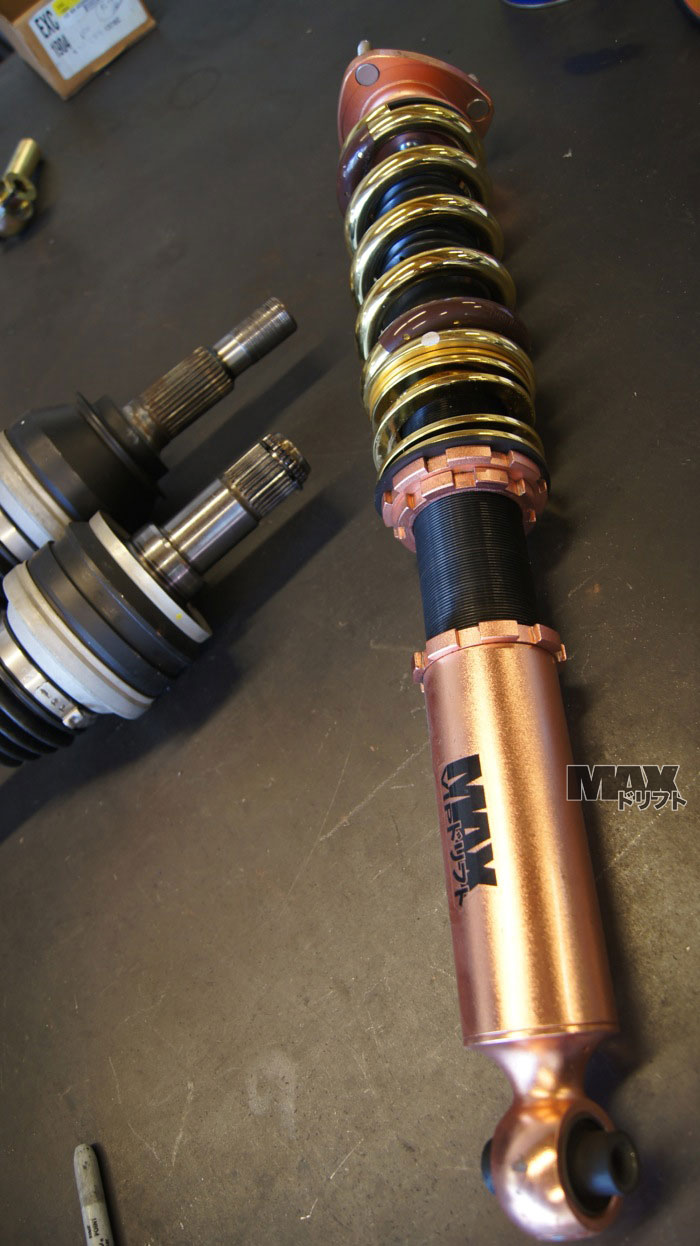

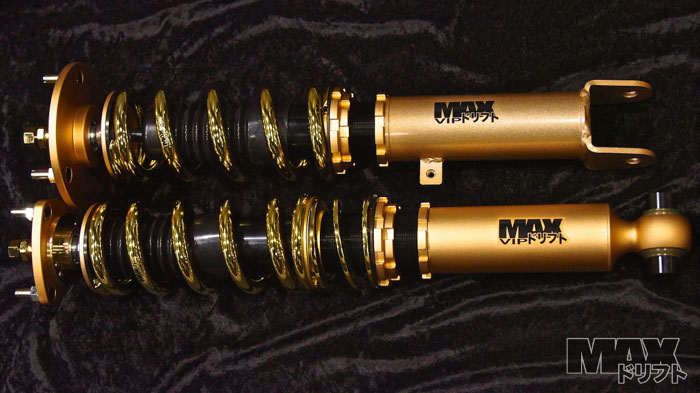

The rear arm set ($1300) allows the wheel to move inboard and shorter axles are required so we purchased a used 07-2013 IS axle set for less than $400 online. A MAXvip coil over set ($1250) tuned for 20 and 18kg springs both allows super low red height and reduces travel to prevent bottom out over daily driving obstacles. The result is perfect fitment with a very aggressive ride height ability without compromising the beautiful body and paint or on a dealership fresh car. Drivability is maintained although the ride is much stiffer than stock and the front turn radius gets reduces as the vehicle is adjusted lower.
There is some fender rubbing during turning at the ride height in the video, this could be improved by raising the car or with the front tire stretch/diameter different than the one we currently use (or less front wheel width/offset). Rear camber is at 3 degrees (and the front is 1.5 which is unadjustable at the moment). We may look into making a front lower control arm next to match front to the rear camber and or improve the turning circle at current height.

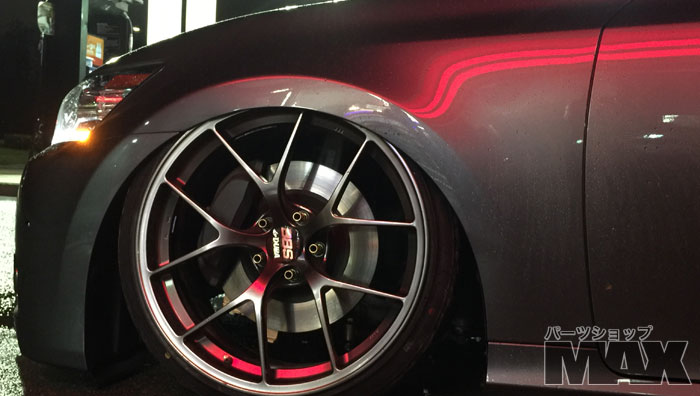

BBS Ri-D Nissan GTR fitment wheels
20x11+15 255/35/20 on federal ss 595 (rear)
20x10+35 245/35/20 on falken 543 (front)

Audio track credit - Diplo - Revolution (Gioni Remix)
Video by Sean Alessi


[ Edited Tue Dec 23 2014, 05:16PM ]
Back to top
Dan at MAX USA
Tue Dec 23 2014, 04:57PM

Registered Member #2
Joined: Sun Jan 21 2007, 01:28PM

Posts: 2866
The helper springs cancel the 3 wheel motion while traversing driveways.




[ Edited Tue Dec 23 2014, 04:59PM ]
Back to top
Dan at MAX USA
Tue Sep 08 2015, 03:44PM

Registered Member #2
Joined: Sun Jan 21 2007, 01:28PM

Posts: 2866

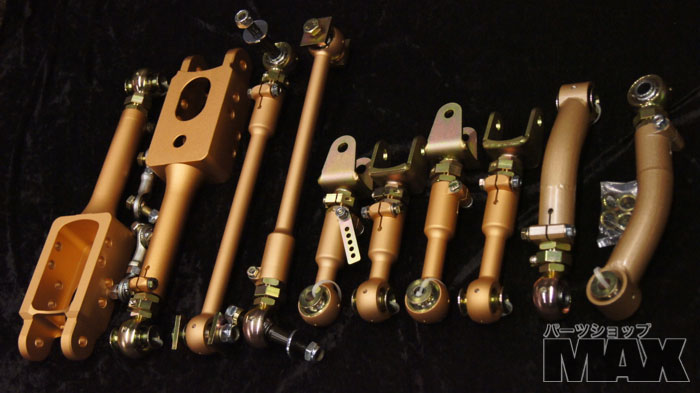

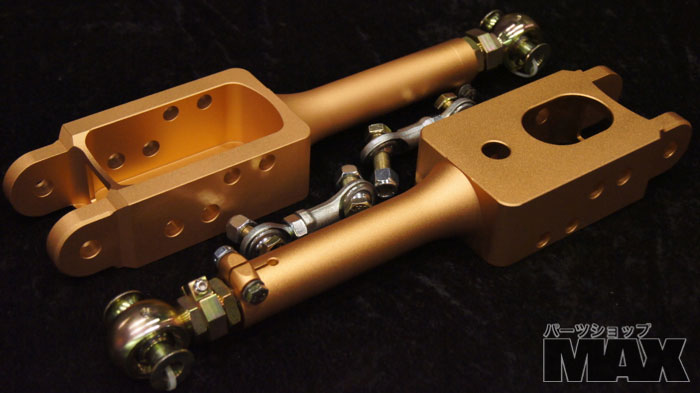

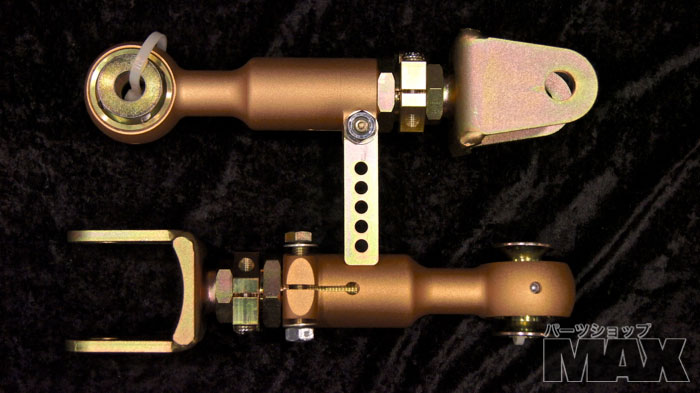

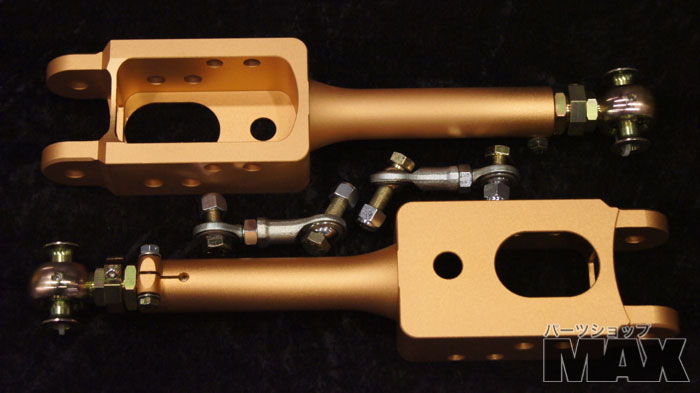

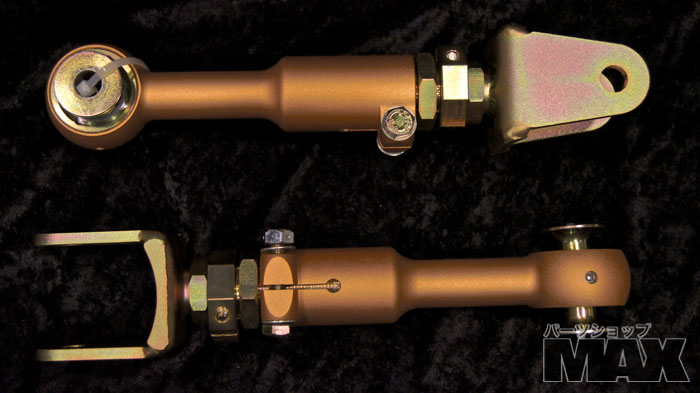

Production parts featuring CNC one piece billet arms and bolt on air over damper option in testing.









[ Edited Tue Sep 08 2015, 03:45PM ]
Back to top
Dan at MAX USA
Fri Dec 04 2015, 07:51PM

Registered Member #2
Joined: Sun Jan 21 2007, 01:28PM

Posts: 2866

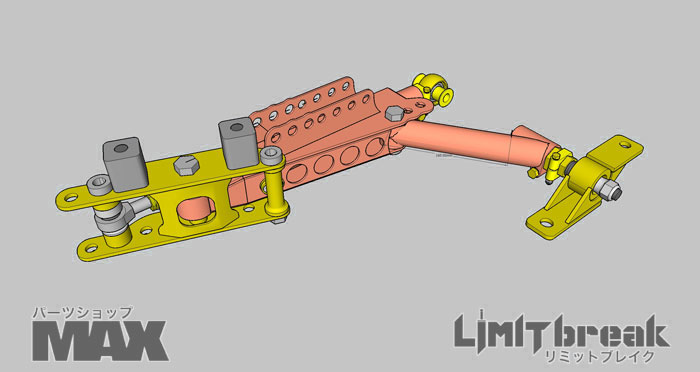

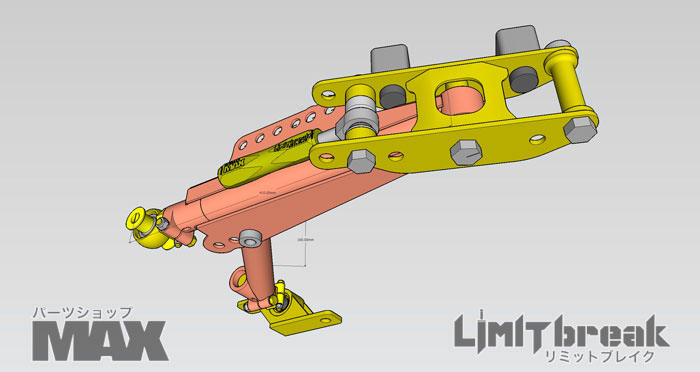

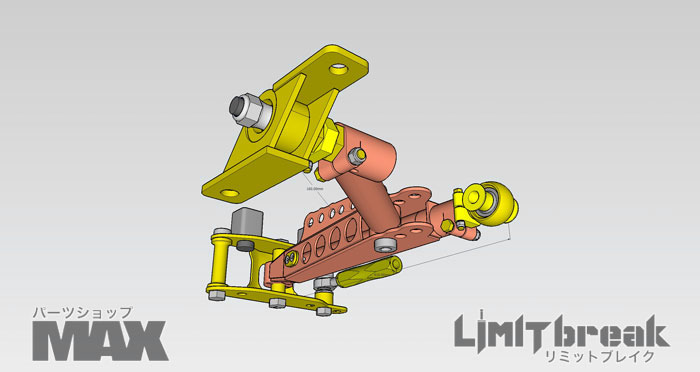

Designing a Limit Break angle kit for Lexus RCF since I heard we may see one in FD 2016.




[ Edited Fri Dec 04 2015, 07:54PM ]
Back to top
Dan at MAX USA
Mon Dec 28 2015, 06:40PM

Registered Member #2
Joined: Sun Jan 21 2007, 01:28PM

Posts: 2866

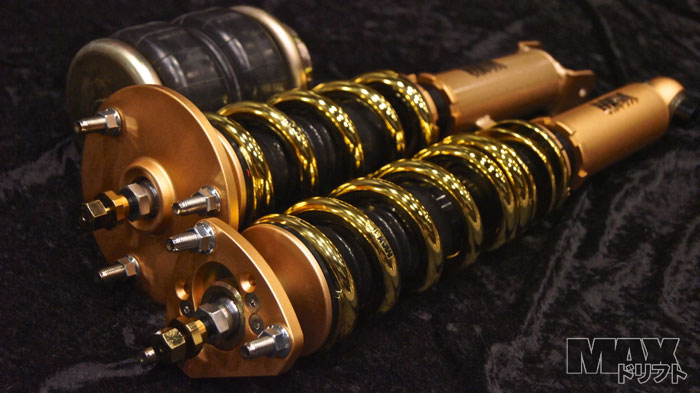

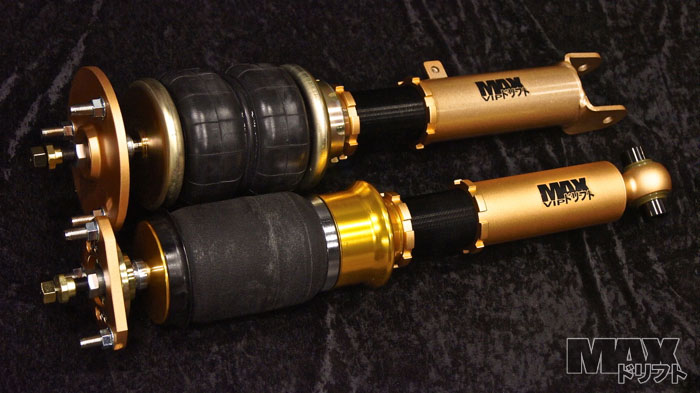

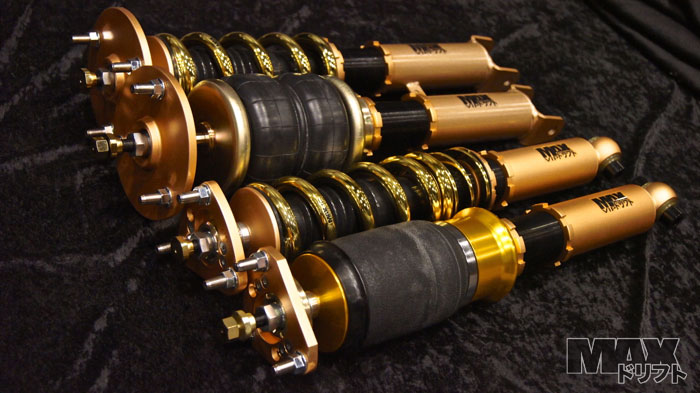

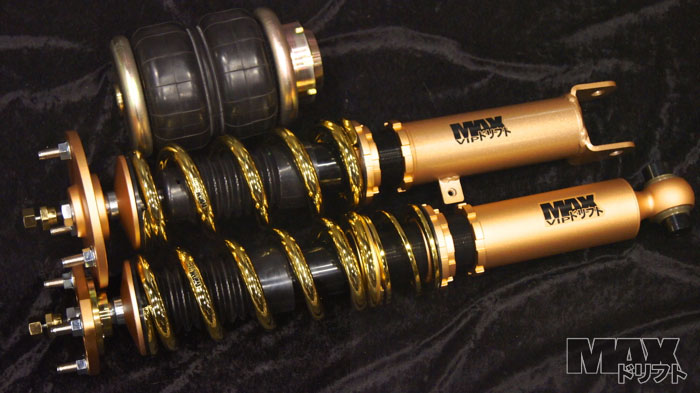

Bag over dampers next to coil over dampers.



[ Edited Mon Dec 28 2015, 06:46PM ]
Back to top
Dan at MAX USA
Tue Dec 29 2015, 05:33PM

Registered Member #2
Joined: Sun Jan 21 2007, 01:28PM

Posts: 2866

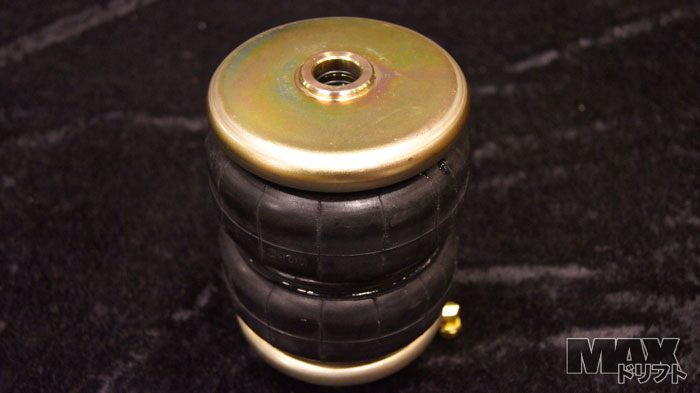

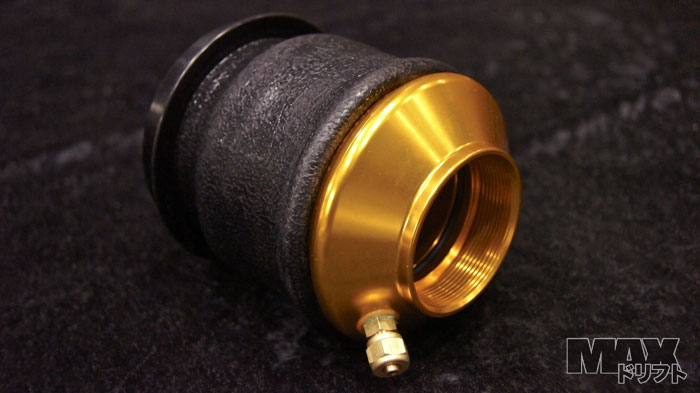

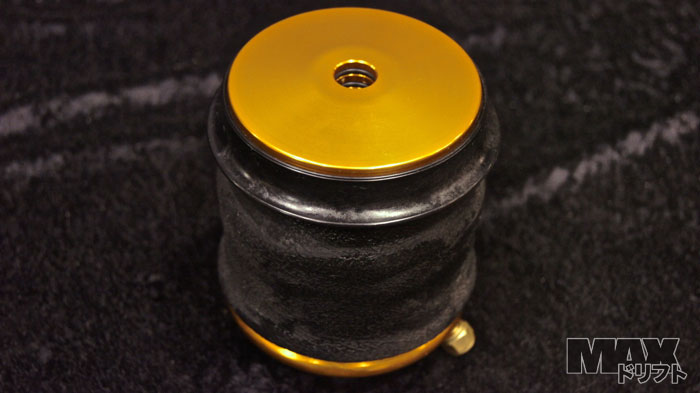

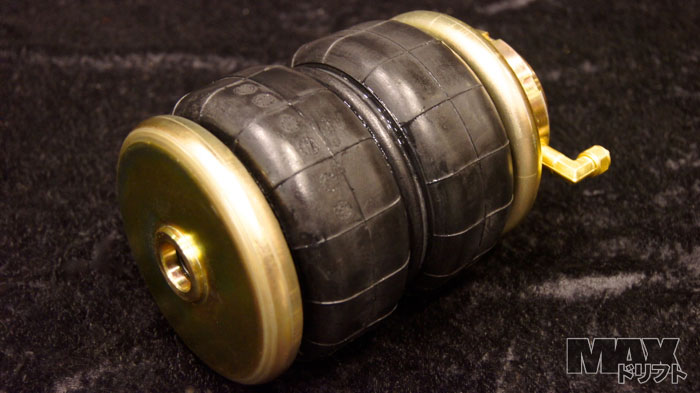

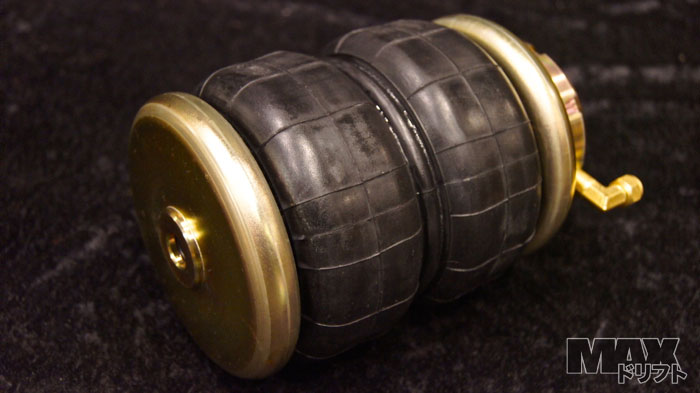

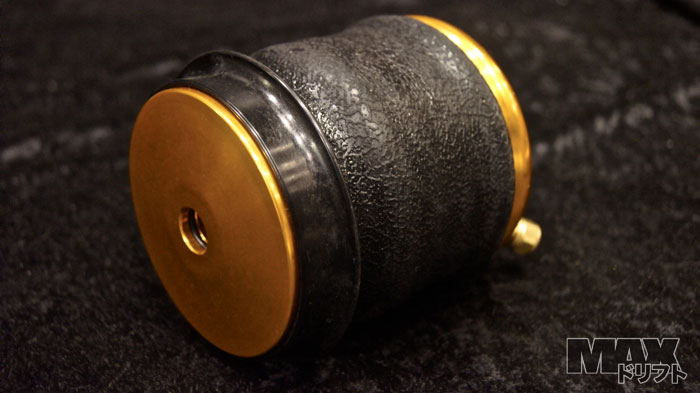

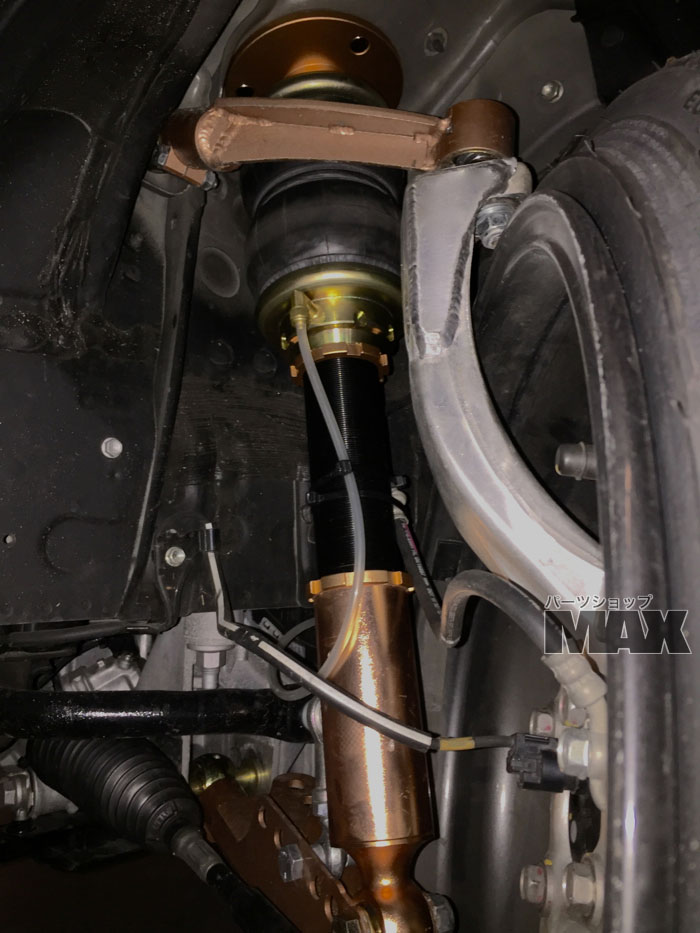

Bolt on modular AIR SPRING option

McPherson Bag (20mmID TOP) Bag Over Damper Air Spring 5" OD



Double wishbone type (14mmID TOP) Bag Over Damper Air Spring 5" OD


Sleeve type (14mmID TOP) Bag Over Damper Air Spring for tight fit, 3.75" inflated OD



Springs or Dampers, Your Choice! Shown installed side by side.



[ Edited Tue Dec 29 2015, 05:38PM ]
Back to top
Dan at MAX USA
Fri Jan 15 2016, 07:47PM

Registered Member #2
Joined: Sun Jan 21 2007, 01:28PM

Posts: 2866

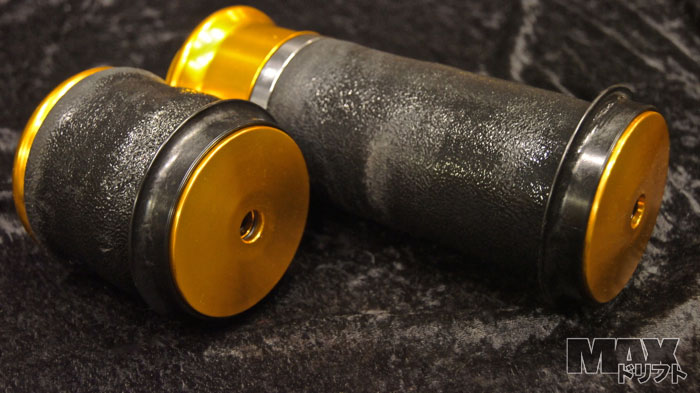

Sleeve bag height range
Back to top
Dan at MAX USA
Tue Feb 02 2016, 09:03PM

Registered Member #2
Joined: Sun Jan 21 2007, 01:28PM

Posts: 2866
Rear end set is in stock. $1770
















Back to top
Dan at MAX USA
Thu Feb 04 2016, 04:39PM

Registered Member #2
Joined: Sun Jan 21 2007, 01:28PM

Posts: 2866

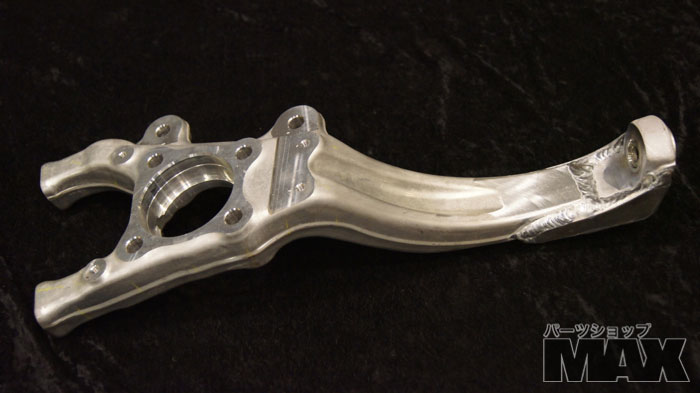

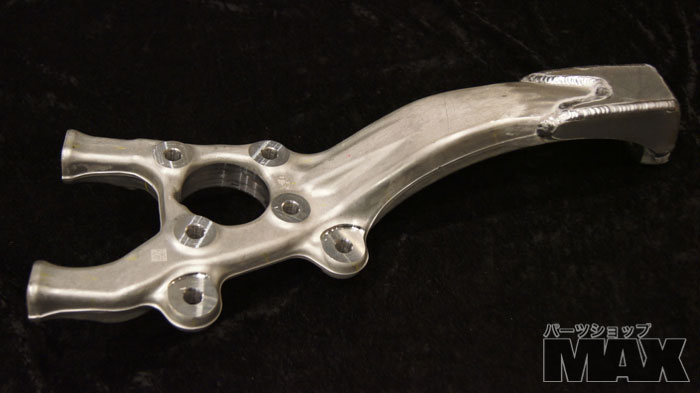

40mm shortened knuckle mod $300 labor
